Dock Target
Product Name:
DT450-650-PM-02
Nord Modules compatibility:
Pallet Mover 800, Pallet Mover 1000
Length:
257 mm | 10.1″
Width:
712 mm | 28″
Height:
412 mm | 16.2″ (possible extension up to 558 mm | 21.9″)
Height from floor to center of sensors:
386.5 mm | 15.2″ (possible extension up to 532.5 mm | 20.9″)
Weight:
18.5 kg | 40.7 lbs
Color:
RAL 7035
Description
The NORD Dock Target works with the Nord Modules Pallet Mover and allows for docking of the AMR and safe loading/unloading of pallets to and from an existing conveyor line.
The Dock Target is installed at the end of a conveyor line and is adjustable in height.
The NORD Dock Target communicates wirelessly with the Pallet Mover to ensure safe loading or unloading of pallets between the conveyor and the Pallet Mover.
Your key benefits:
- Simple and fast assembly process - providing a complete solution in combination with the Nord Modules Pallet Mover.
- Can be installed at the end of your existing conveyor solution.
- Adjustable height.
Compatible with…

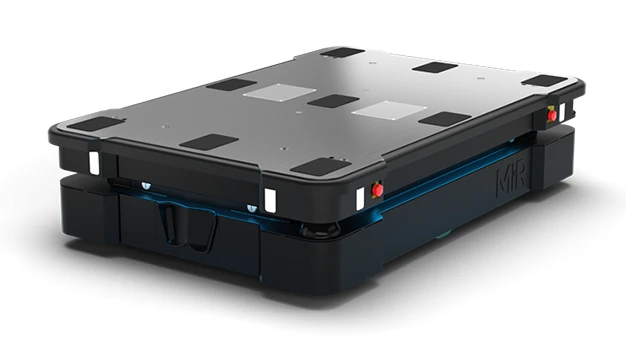

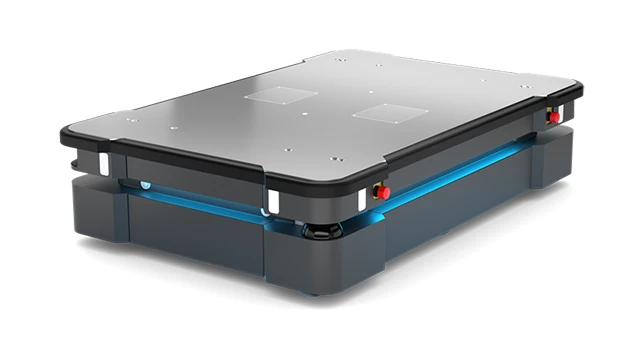

Robot compatibility
MiR600
